mounting screws included

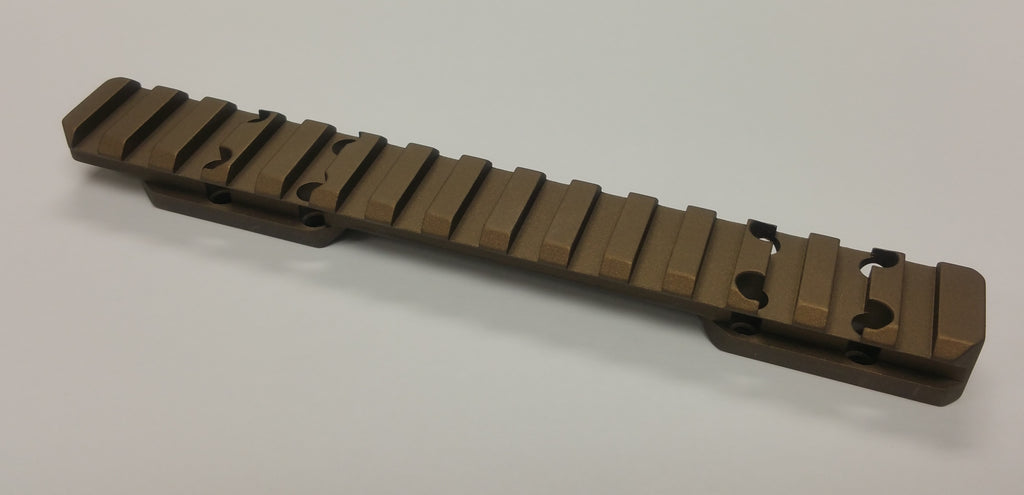

Browning X-Bolt Picatinny Rail – Product Dimensions and Weights
| Action | Rear Height (20MOA)1 | Hole2 1 ↔ 2 | Hole 2 ↔ 3 | Hole 3 ↔ 4 | Front Height (20MOA)1 | Overall Length | Weight |
| Short Action | .500″ (.537″) | .700″ | 2.942″ | .700″ | .425″ (.437″) | 6.155″ | 2.2oz. |
| Long Action | .500″ (.537″) | .700″ | 3.694″ | .700″ | .425″ (.433″) | 6.863″ | 2.4oz. |
| Magnum Action | .500″ (.539″) | .700″ | 3.930″ | .700″ | .425″ (.433″) | 6.965″ | 2.3oz. |
1 The height is measured at hole 1 and hole 4 ; from the top of the action to the top of the rail.
2 Hole 1 is closest to the shooter and hole 4 is closest to the muzzle. Picatinny Rail hole spacing measured center to center.
Note:
The Magnum rail is for magnum length actions. Current calibers in the magnum length action are .300 PRC, .300 RUM, & .375 H&H. The Super-Short Action is for the .223 Rem, .22-250 Rem, .223 WSSM & .243 WSSM
